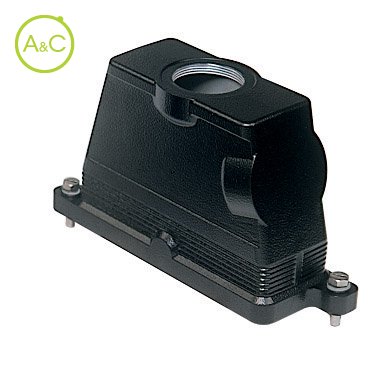

Hoods with top entry, screw locking

  • Aluminium
  • Metric entry
Download Datenblatt

Entry

  • 1xM32
  • 1xM40
  • 1xM50
  • 2xM32
  • 2xM40
  • 3xM25
Article Number MGV 24.232
Protection Degree IP68
Material Housing Aluminium
Height 111 mm
Length 193
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Two-sided
Width 58 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
