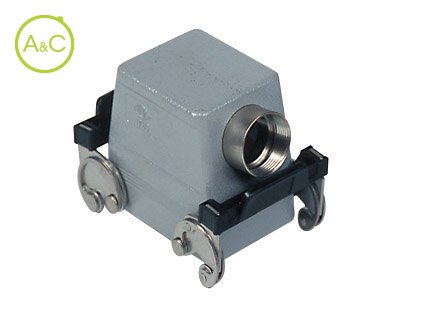

Hoods with 2 levers

  • Side entry
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM25
  • 1xM32
Article Number MHO 50 X25*
Protection Degree IP66
Material Housing Aluminium
Height 56 mm
Remark May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length 82
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 71 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 50
Covers with 4 pegs
CHC 50 S
Covers with 4 pegs
