Hoods with pegs

  • Side entry
  • Aluminium, 1xM40
  • General

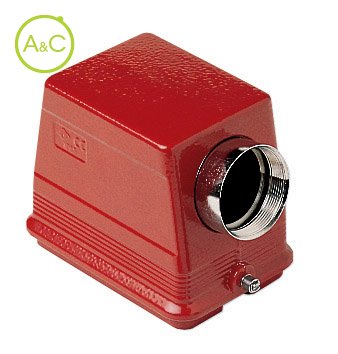

Article Number MHOR 48 L40
Protection Degree IP65
Material Housing Aluminium
Height 98 mm
Length 150.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CNE...RY 48P+PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Side entry
Width 90 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
