Surface mounting housings

With single lever and cover
Aluminium, Metric entry

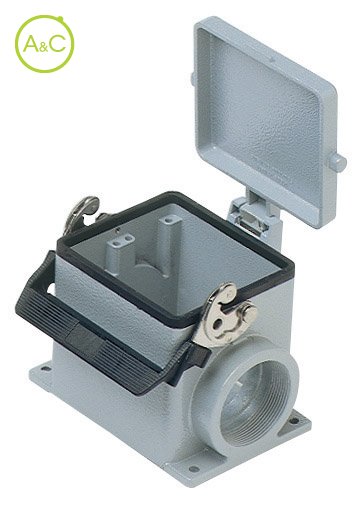

MHP 32 LS40

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM40
1xM50
2xM40
2xM50

Article Number	MHP 32 LS40
Protection Degree	IP65
Material Housing	Aluminium
Height	90 mm
Length	125
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	84 mm

Article Number	MHP 32 LS50
Protection Degree	IP65
Material Housing	Aluminium
Height	90 mm
Length	125
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	84 mm

Article Number	MHP 32 LS240
Protection Degree	IP65
Material Housing	Aluminium
Height	90 mm
Length	125
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	84 mm

Article Number	MHP 32 LS250
Protection Degree	IP65
Material Housing	Aluminium
Height	90 mm
Length	125
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	84 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
