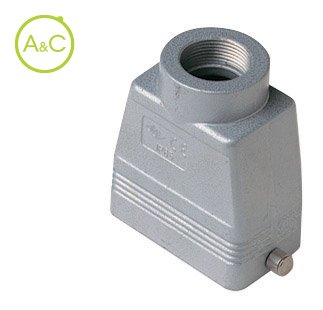

Hoods with 2 pegs

  • Top entry
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM20
  • 1xM25
Article Number MHV 10 L20*
Protection Degree IP66
Material Housing Aluminium
Height 58 mm
Remark Can only be used with a complete cable gland
Length 73
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 10 LG
Covers with 1 lever
