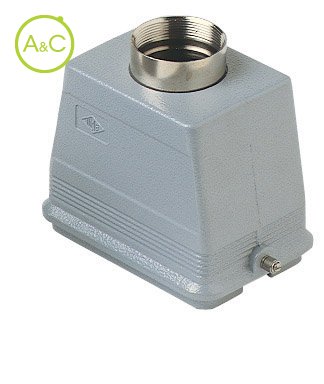

Hoods with 2 pegs

  • Top entry
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM32
  • 1xM40
  • 1xM50
Article Number MHV 48 L32
Protection Degree IP66
Material Housing Aluminium
Height 121 mm
Length 121
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 128P+PE; CDD 216P+PE; CDS 84P+PE; CSH 48P+PE; CNE-CSE 48P+PE; CCE 48P+PE; CSS 48 P+PE; CQE 92P+PE; CMCE 20+4(aux)P+PE; CME 20+4(aux)P+PE; CMSH 20+4(aux)P+PE; CMCE 32+4(aux)P+PE; CME 32+4(aux)P+PE; MIXO 6+6 modules; CDSH 84 P+PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 90 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
