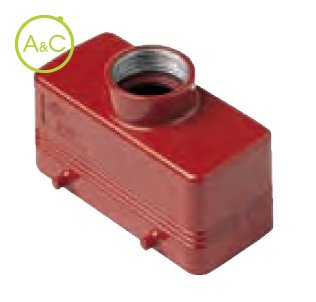

Hoods with pegs

  • Top entry
  • Aluminium, 1xM25
  • General
Article Number MHVR 16.25
Protection Degree IP65
Material Housing Aluminium
Height 58 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CNE…RY 16P+PE; CP…RY 6P+PE; CX…RY 4/0P+PE; CX…RY 4/2P+PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Top entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHCR 16 G
Cover with 2 levers
