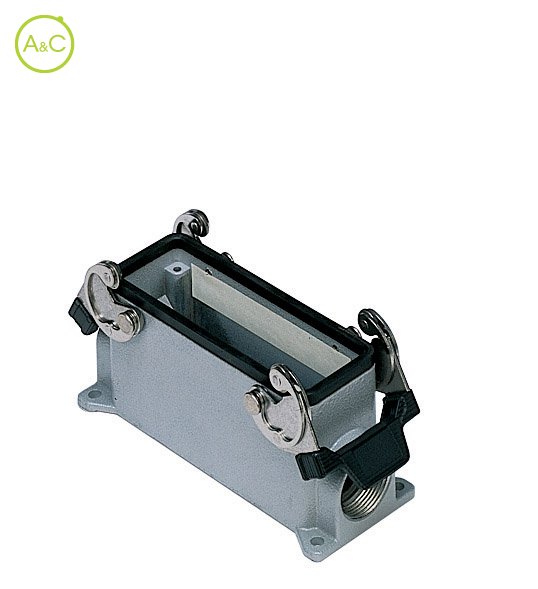

Surface mounting housings with 2 levers, high construction

  • Aluminium
  • Metric entry
Download Datenblatt

Entry

  • 1xM32
  • 1xM40
  • 2xM32
  • 2xM40
Article Number MMAP 16.32
Protection Degree IP66
Material Housing Aluminium
Height 81 mm
Length 144
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 24
Covers with 4 pegs
