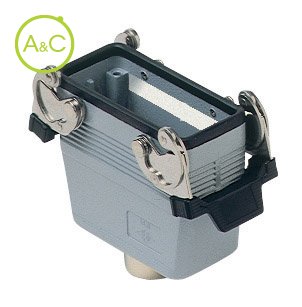

Hoods with 2 levers and gasket, high construction

  • Top entry
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM25
  • 1xM32
Article Number MMAV 06 G25
Protection Degree IP66
Material Housing Aluminium
Height 97 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CME 6+2 (aux) P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 59 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 16
Covers with 4 pegs
