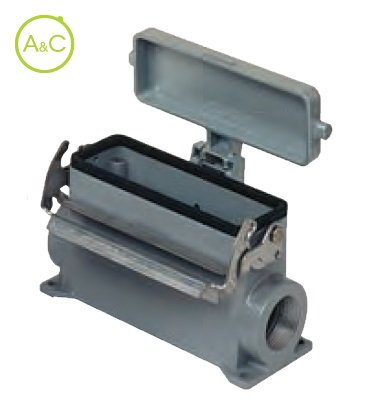

Surface mounting housings, high construction

  • With single lever in stainless steel and aluminium cover
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM32
  • 1xM40
  • 2xM32
  • 2xM40
Article Number MVAP 06 LS32
Protection Degree IP65
Material Housing Aluminium
Height 73 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
