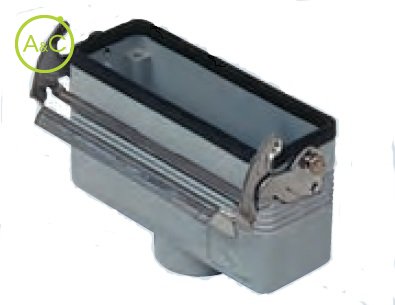

Hoods top entry

  • With gasket and 1 lever in stainless steel
  • Aluminium, 1xM32
Download Datenblatt
  • General
Article Number MVV 16 LG 32
Protection Degree IP67
Material Housing Aluminium
Height 63.5 mm
Length 107.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 68 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
