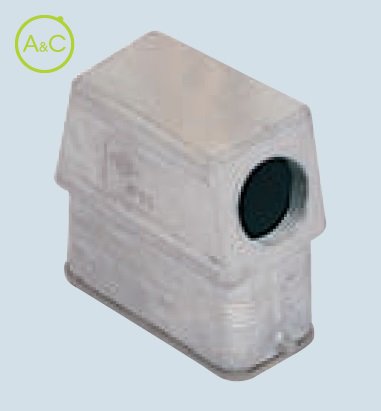

Hoods for electromagnetic compatibility with pegs

  • Side entry, without adaptor
  • Aluminium, 1xM25
Download Datenblatt
  • General
Article Number MZFOS 25 L25*
Protection Degree IP66
Material Housing Aluminium
Height 70.5 mm
Remark Enclosure without adaptor, threaded on the body, to be used only with a complete cable gland
Length 79.5
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 25 P; CDD 38 P + PE; CSAH 16 P + PE; CDA 16 P + PE; CDC 16 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 36 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CZCS 25 LG
Cover for electromagnetic compatibility with lever
