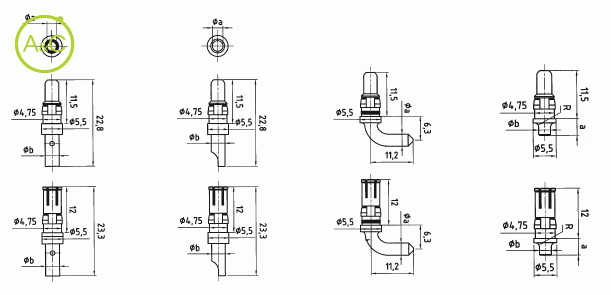

Mixed layout contacts solder pot

High power contacts

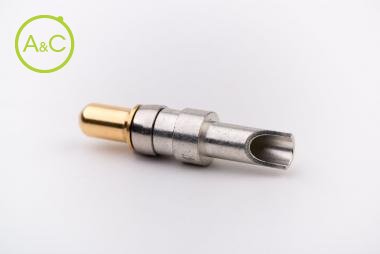

P5110G2

P5110G2

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Current Rating

10
20
30
40

Article Number	P5110G2	S6110G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5120G2	S6120G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5130G2	S6130G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5140G2	S6140G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
