Mixed layout contacts dip solder 180°C

  • High power contacts
Download Datenblatt

Current Rating

  • 10
  • 20
  • 30
  • 40

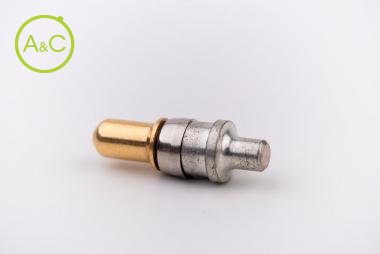

Article Number P5210G2 S6210G2
Contact Plating Au over Ni Au over Ni
Contact Material CU-alloy CU-alloy
Remark G2: preferred version G1 & G3 on request G2: preferred version G1 & G3 on request
Gender Male Female
Test Voltage U Eff 1000 1000
Quality Class* G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
