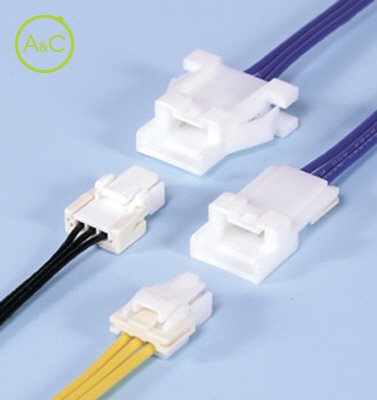

Retainer IDC 2 to 15 contacts

PAL CONNECTOR

PAFS-02V-S

PAFS-02V-S

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
5
6
7
8
9
10
11
12
13
14
15

Article Number	PAFS-02V-S
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-03V-S
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-04V-S
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-05V-S
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-06V-S
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-07V-S
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-08V-S
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-09V-S
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-10V-S
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-11V-S
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-12V-S
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-13V-S
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-14V-S
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PAFS-15V-S
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
