Zurück zur Projektübersicht
Download Datenblatt
Mixed layout Dip solder 90°
- With metal bracket and thread
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
Provertha

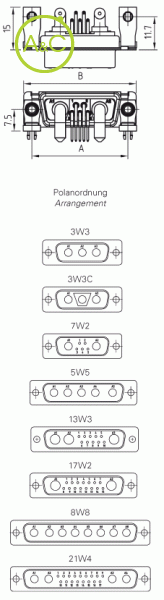

Contact Arrangement
- 3W3
- 3W3C
- 5W5
- 7W2
- 8W8
- 13W3
- 17W2
- 21W4
| Article Number | PDT3W3P6xG248 | PT3W3S6xG248 |
| Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | High power contacts: Au over Ni Coax contacts: Au over Ni | High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | / | / |
| Contact Material | High power contacts: Cu-alloy Coax contacts: Cu-alloy | High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | High power contacts: 10-40A Coax contacts: 2 | High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | / | / |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
| Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | High power contacts: 1000 V Coax contacts: 1000 | High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
| Article Number | PDT3W3CP6xG248 | PT3W3CS6xG248 |
| Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | High power contacts: Au over Ni Coax contacts: Au over Ni | High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | / | / |
| Contact Material | High power contacts: Cu-alloy Coax contacts: Cu-alloy | High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | High power contacts: 10-40A Coax contacts: 2 | High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | / | / |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
| Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | High power contacts: 1000 V Coax contacts: 1000 | High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
| Article Number | PDT5W5P6xG248 | PT5W5S6xG248 |
| Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | High power contacts: Au over Ni Coax contacts: Au over Ni | High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | / | / |
| Contact Material | High power contacts: Cu-alloy Coax contacts: Cu-alloy | High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | High power contacts: 10-40A Coax contacts: 2 | High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | / | / |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
| Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | High power contacts: 1000 V Coax contacts: 1000 | High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
| Article Number | PDT7W2P6xG248 | PT7W2S6XG248 |
| Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
| Contact Material | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
| Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
| Article Number | PDT8W8P6xG248 | PT8W8S6xG248 |
| Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | High power contacts: Au over Ni Coax contacts: Au over Ni | High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | / | / |
| Contact Material | High power contacts: Cu-alloy Coax contacts: Cu-alloy | High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | High power contacts: 10-40A Coax contacts: 2 | High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | / | / |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
| Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | High power contacts: 1000 V Coax contacts: 1000 | High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
| Article Number | PDT13W3P6xG248 | PT13W3S6xG248 |
| Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
| Contact Material | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
| Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
| Article Number | PDT17W2P6xG248 | PT17W2S6xG248 |
| Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
| Contact Material | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
| Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
| Article Number | PDT21W4P6xG248 | PT21W4S6xG248 |
| Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
| Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
| Contact Plating | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni | Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni |
| Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
| Contact Material | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy | Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy |
| Remark | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 | For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 |
| Remark * | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) | For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) |
| Remark *** | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 | For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 |
| Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
| Thread Type | 4= UNC 4-40 3 = M3 | 4= UNC 4-40 3 = M3 |
| Current Rating | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 | Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2 |
| Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
| Gender | Male | Female |
| Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
| Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
| Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
| Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
| Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
| Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
| Test Voltage U Eff | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 | Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000 |
| Quality Class* | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles | G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles |
| Special Contact Version** | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A | 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
