Receptacle Housing

  • PNI CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 10
Article Number PNIRR-02V PNIRR-02VF
Number Of Contacts 2 2
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2.0mm Pitch Disconnectable Crimp Style (Wire to Wire) 2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type Wire to Wire Connectors Wire to Wire Connectors
Pitch / Style 2.00 mm 2.00 mm
Rated Current (ac/dc) 3 A 3 A
Rated Voltage (ac/dc) 100 V 100 V
Remark With panel locks Without panel locks
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

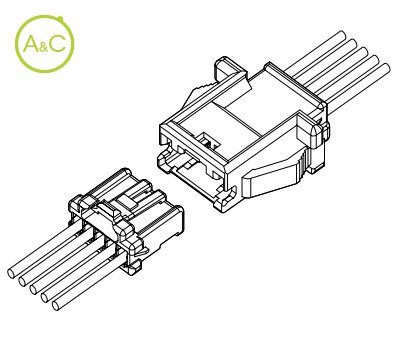

This connector is a 2.0mm pitch wire to wire connector, having incomplete mating prevention mechanism. Inertial lock structure Finger-friendly design Secure locking structure Mountable on a variety of panels Secondary retainer RoHS Compliant
