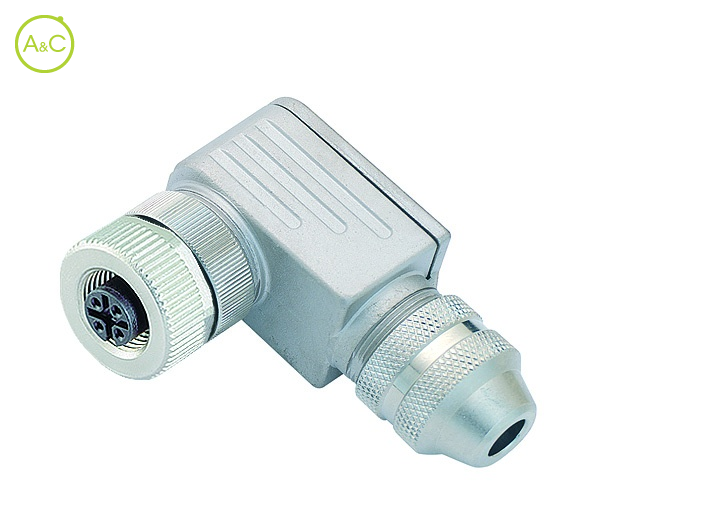

Female round connector

  • Stainless steel nut + plastic body
Download Datenblatt

Number Of Poles

  • 4
  • 5
Article Number RDKF 00410 075 RDKF 00410 095
Number Of Contacts 4 4
Protection Degree IP67* IP67*
Upper Temperature +90 °C +90 °C
Lower Temperature -25 °C -25 °C
Cable Diameter 4-6,5 mm 6-8 mm
Fixing Thread M12 M12
Housing Material Plastic Plastic
Housing Oil Resistance Very good Very good
Contact Material Optalloy Optalloy
Max. Wire Section 0,75 mm² 0,75 mm²
Locking Nut Material Stainless steel Stainless steel
Voltage Vdc 1 to 250 1 to 250
Voltage Vac 1 to 250 1 to 250
Max. Currrent 4 A @40°C 4 A @40°C
Contact Gender F F
Coding A A
Cabling System Screw vite Screw vite
Remark The protection degree level is guaranteed only when correctly assembled with Shield's couterpart The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
