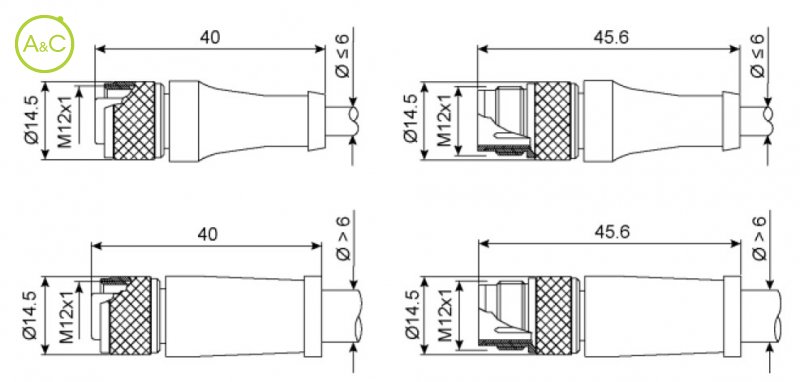

Male round connector

  • NPN
Download Datenblatt

Number Of Poles

  • 4
Article Number RDLM 26200 374 3000
Number Of Contacts 4
Protection Degree IP65*
Upper Temperature +70 °C
Lower Temperature -40 °C
Housing Material TPU
Circuits NPN
Housing Oil Resistance Very good
Contact Material Golden over nickel plated CuZn
Locking Nut Material Brass nickel plated
Voltage Vdc 1 to 30
Max. Currrent 4 A @40°C
Housing Colour Transparent
Contact Gender M
Shielding not connected
Ground Pole No
Max. Number Wires 4
Wire Colour bn1, wh2, bu3, bk4
Coding A
Remark The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
