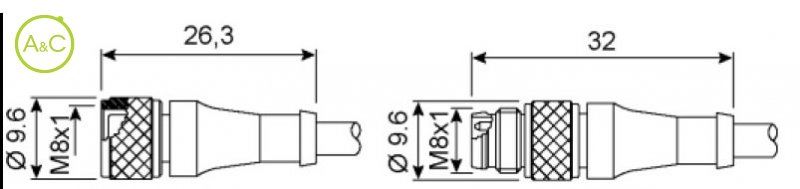

Male round connector

  • PNP
Download Datenblatt

Number Of Poles

  • 3
  • 4
Article Number RELM 05100 205 3000
Number Of Contacts 3
Protection Degree IP65*
Upper Temperature +70 °C
Lower Temperature -40 °C
Housing Material TPU
Circuits PNP
Housing Oil Resistance Very good
Contact Material Golden over nickel plated CuZn
Locking Nut Material Brass nickel plated
Voltage Vdc 1 to 30
Max. Currrent 3 A @40°C
Housing Colour Transparent
Contact Gender M
Ground Pole No
Max. Number Wires 3
Wire Colour bn1, bu3, bk4
Coding A
Remark The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
