Plug for RHM Connector

  • RHM CONNECTOR
Download Datenblatt

Plug

  • Lower
  • Upper
  • Upper and lower
Article Number RHM-176P-SDK-11-U1L1C RHM-176P-SDK-11-U2L1C
Number Of Contacts 88 88
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 1.0mm Pitch Board-to-Board Connector 1.0mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 1.00 mm 1.00 mm
Rated Current (ac/dc) 0.5 A 0.5 A
Rated Voltage (ac/dc) 50 V 50 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark Key pattern of mating part: upper: Pattern 1 lower: pattern 1 Key pattern of mating part: upper: Pattern 2 lower: pattern 1
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

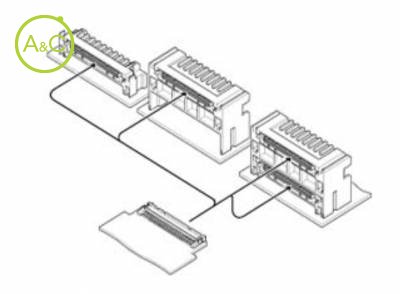

The plug consists of upper and lower parts in order to save space. This connector enables also flexible application by using either upper or lower parts individually. The upper and lower parts of plug can be used individually Reversible connection 8 positioning keys can be set RoHS Compliant
