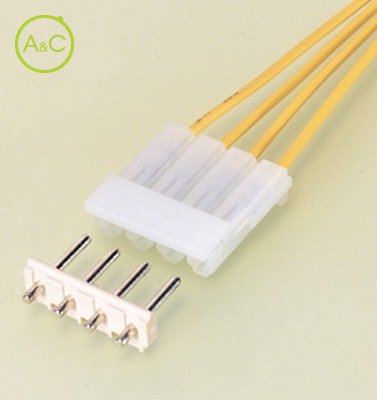

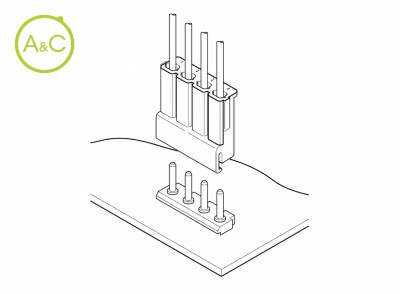

Top Entry Header THT

SV CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	RTB-1.5-02F
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-04F
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-06F
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-08F
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-10F
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

The directional features of the housing prevent reverse contact insertion. The housings with two or four circuits have locking mechanisms. This feature provides polarization and prevents misinsertion. Anti-misinsertion feature The directional features of the housing prevent reverse contact insertion. Locking mechanism The housings with two or four circuits have locking mechanisms. This feature also provides polarization so that the housing cannot be mismated with the header. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75171 RoHS Compliant
