Top Entry Header THT

V CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	RTB-1.5-2P
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-3P
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-4P
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-5P
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RTB-1.5-6P
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

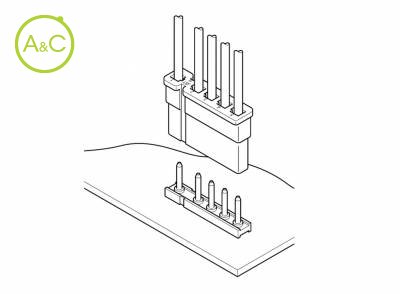

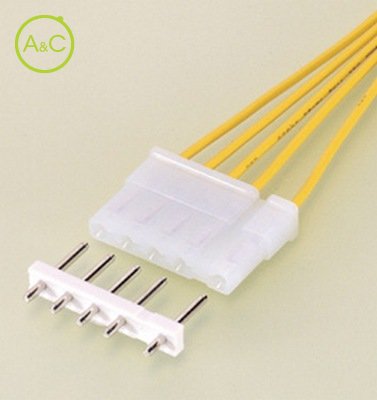

The V connector can have from two to six circuits. A single contact position is provided 7.5mm (.295") away from the adjacent position, while the pitch of the other positions is 5.0mm (.197"). This prevents reverse connection of the receptacle and header. Anti-misinsertion construction One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion. Two-point contact Each contact has two wiping areas which ensure stable and reliable connection. Standards UL Recognized E60389 CSA Certified LR20812 TUV Recognized R75171 RoHS Compliant
