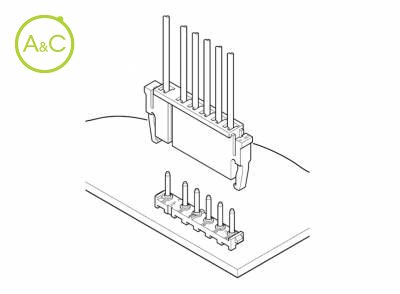

Side Entry Header

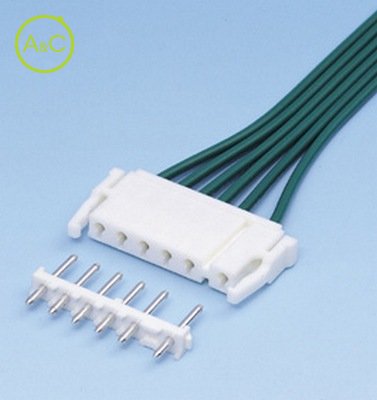

  • DV CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
Article Number S02B-DVS-L
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 5.00 mm
Rated Current (ac/dc) 5 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion. Two-point contact. Each contact has two wiping areas which ensure stable and reliable connection. Secure mounting The housing lock feature secures the connector with the header, ensuring that a stable connection is maintained during vibration. Twin-beam contacts Each contact has two wiping areas, ensuring a stable and reliable connection. Housing lances The lances on the resilient housing ensure each insertion and secure locking of the contact into housing. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
