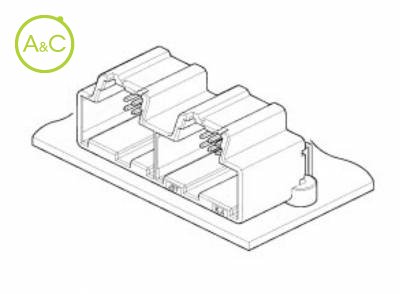

Male Connector Side Entry for AIT Connector

  • AIT CONNECTOR
Download Datenblatt

Number Of Poles

  • 4
  • 8
  • 10
  • 20
  • 34
  • 52
Article Number S04B1-AIT-A1A-KS
Number Of Contacts 4
Upper Temperature +100 °C
Lower Temperature -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style
Connection Type Automotive
Pitch / Style 2.54 mm
Rated Current (ac/dc) 5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 14 V
Remark Black
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
0.64 non-waterproof connector series based on the same footprint of USCAR standard. This connector has an abundant variation of PC board lock mechanism, circuit number development, and an adoption of designing wire-to-wire type, hence it enables to select the specified connector type according to your needs. Specifications conform to footprint of USCAR standard. Independent secondary locking features. Standard RoHS Compliant USCAR
