Header THT

  • HIT CONNECTOR
Download Datenblatt

Number Of Poles

  • 169
Article Number S169B-HITHTP-01A
Number Of Contacts 169
Upper Temperature +100 °C
Lower Temperature -40 °C
General Description 2.2mm Pitch Disconnectable Crimp Style
Connection Type Automotive
Pitch / Style 2.20 mm
Rated Current (ac/dc) 2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 14 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

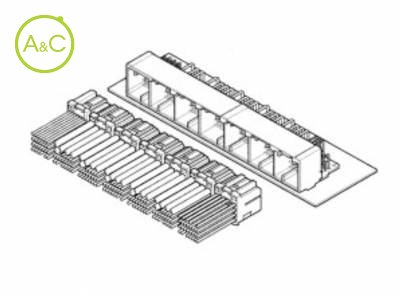

The HIT connector is multi-circuit and miniaturized for ECU for the automobile. Female connector is divided into seven housings, and considers the ergonomics and workability. Multi-circuit structure, Miniaturized Current products available are up to 180-circuit. Although this connector is multi-circuit, it was miniaturized by narrow pitch. The insertion force in the mating operation of one time is decreased by block diversion structure. Reliability It conforms to the automotive performance evaluation standard. Diversity It is hybrid structures of using 0.64mm(.025") and 2.8mm(.110") terminals. Large current circuit is also available. RoHS Compliant
