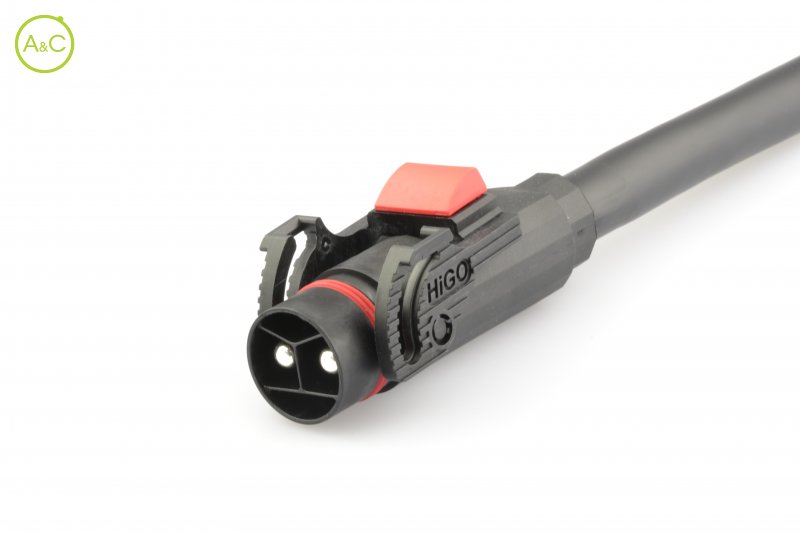

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
Higo
Number Of Poles
- 8 (2+6)
| Article Number | S835AG P 00 HA 1000 |
| Color | Black |
| Connector Diameter | 28 mm |
| Wire Section | 2 x 16,0 + 6 x 0,5 mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper alloy |
| Cable Diameter | 17 mm |
| Insulation Wire | PVC |
| Remark | Other cable length/type on request |
| Rated Current | 100 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Silver plated |
| Fitting Length | 97 mm |
| Material Jacket | PVC |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
