Plug Contact Gold Plated AWG 30 to 28

  • ACH CONNECTOR
Download Datenblatt

Applicable Wire

  • AWG 30 to 28
Article Number SACHP-003G-P0.2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size 0.05 to 0.08 (AWG #30 to #28) mm²
Connection Type Wire to Wire Connectors
Pitch / Style 1.20 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 50 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

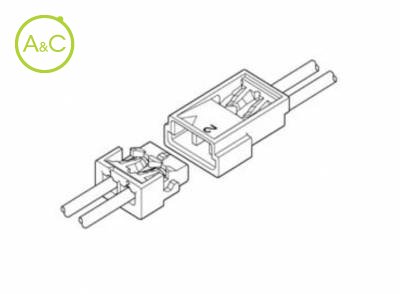

This is the wire-to-wire connector for DC power supply compatible with the ACH connector for PC board. Connector for DC power supply Common use with the existing socket contact of ACH connector RoHS Compliant
