Contact AWG 30 to 24

  • SAN CONNECTOR
Download Datenblatt

Applicable Wire

  • AWG 30 to 24
Article Number SAN-002T-0.8A SAN-002T-0.8K
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2mm Pitch Board-in Crimp Style 2mm Pitch Board-in Crimp Style
Applicable Wire Size 0.05 to 0.22 (AWG #30 to #24) mm² 0.05 to 0.22 (AWG #30 to #24) mm²
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 2.00 mm 2.00 mm
Rated Current (ac/dc) 2 A 2 A
Rated Voltage (ac/dc) 250 V 250 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark Type A Type B
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

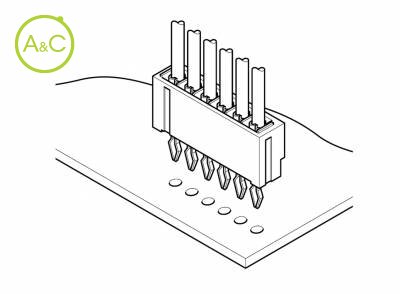

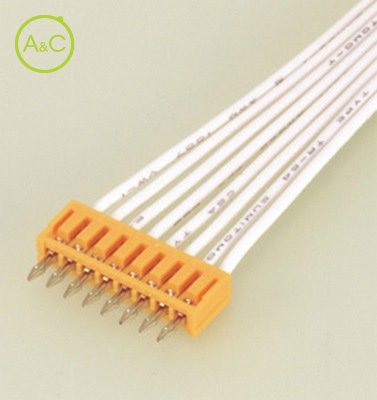

Measuring 2.0mm (.079") in pitch, 6.0mm (.236") in mounting height, and 3.25mm (.128") in thickness, this board-in connector meets the needs for high-density mounting on printed circuit boards efficiently and economically. The connector is ideal for VCRs, car stereo systems, audio products and many other consumer oriented electronic products. Compact This connector measures 2.0mm (.079") in pitch, 6.0mm (.236") in mounting height, and 3.25mm (.128") in thickness. Its compact size allows high-density mounting on printed circuit boards. Housing lances The lances on the resilient housing ensure easy insertion and secure locking of the contact into the housing. Easy mounting onto printed circuit boards The solder tails of the contact are resilient so as to ensure easy assembly and to provide a secure lock of the connector in the printed circuit board prior to soldering. Two types of contacts Type A The solder tail of this contact is split in two for greater elasticity. This promotes easy insertion and secure mounting on printed circuit boards. This contact can be used for two different thickness of PC boards. [1.6mm (.063 inches) and 1.2mm (.047 inches) thick] Type B The solder tail of this contact is joined at the tip. This extra support prevents breaking and ensures easy handling. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9251673 RoHS Compliant
