Connector with height 1.9 to 3.2

  • SCK CONNECTOR
Download Datenblatt

Height

  • 1.9
  • 2.2
  • 2.5
  • 3.2
Article Number SCK-6A-02PT-TF SCK-8A-02PT-TF
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2.54mm Pitch Connector for SIM & USIM Card 2.54mm Pitch Connector for SIM & USIM Card
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 2.54 mm 2.54 mm
Rated Current (ac/dc) 1.0 A 1.0 A
Rated Voltage (ac/dc) 30 V 30 V
Standard SIM SIM
Pcb Mount Style Surface Mount Technology (SMT) Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

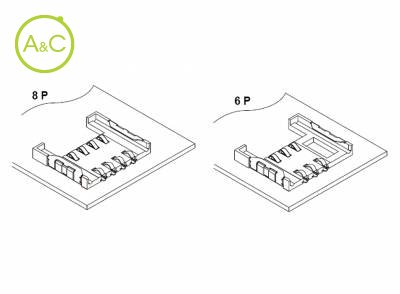

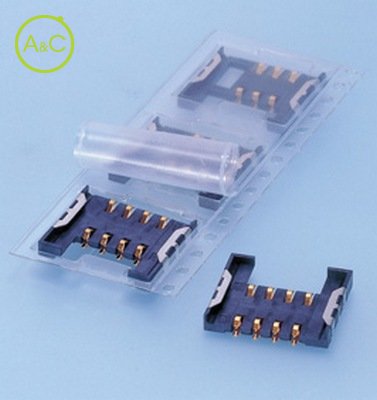

For SIM/UIM Cards. The SCK connector is designed for the SIM Card, complying with the GSM 11.11 standard, which will be used in the European digital GSM mobile phones. This connector is also suitable for the USIM Card to be used in the 3G mobile network ( W - CDMA ). Durability Durability of 10,000 times is guaranteed. Abundant variations There are abundant variations from low profile type with a height of 1.9mm (.075") to 3.2mm (.126"). Embossed tape for automatic mounting Supplied in embossed tape packaging for automatic surface mounting operation. RoHS Compliant
