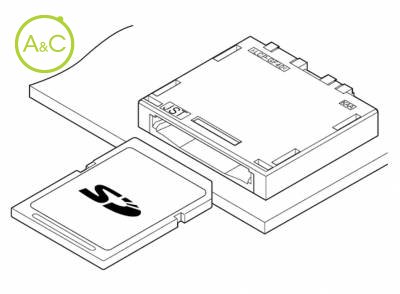

Connector for SD Memory Card and Multi Media Card

  • SD CONNECTOR
Download Datenblatt

Number Of Poles

  • 9
Article Number SD-C-9BND-P23-332
Number Of Contacts 9
Upper Temperature +85 °C
Lower Temperature -25 °C

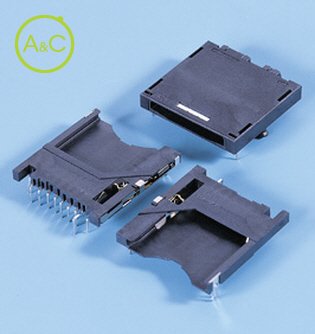

General Description SD Card Connector (Through hole Type)
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 5 V
Standard SD
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
The SD connector is designed for the SD (Secure Digital) memory card. Also applicable to the MMC (Multi Media Card). Card detection switch equipped type is also available. This connector has a write-protect switch to prevent accidental card data deletion. Push-push mechanism The card can be ejected by simple push-push operation. Card-detection switch Card-detection switch and write-protect switch equipped types are also available. Static electricity shielding GND contacts are designed to be protected against static electricity. RoHS Compliant
