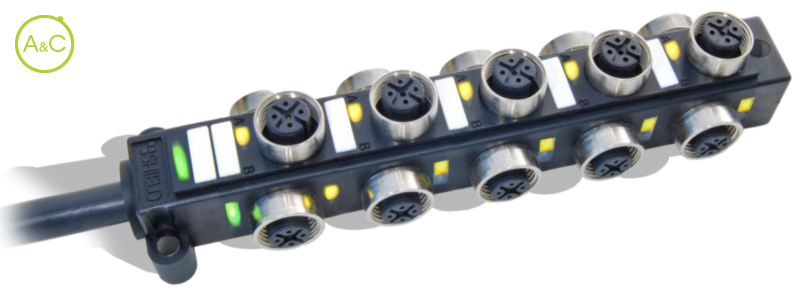

With small space profile, from 3 to 15 sockets, 1 signal each socket

  • Without LED
Download Datenblatt

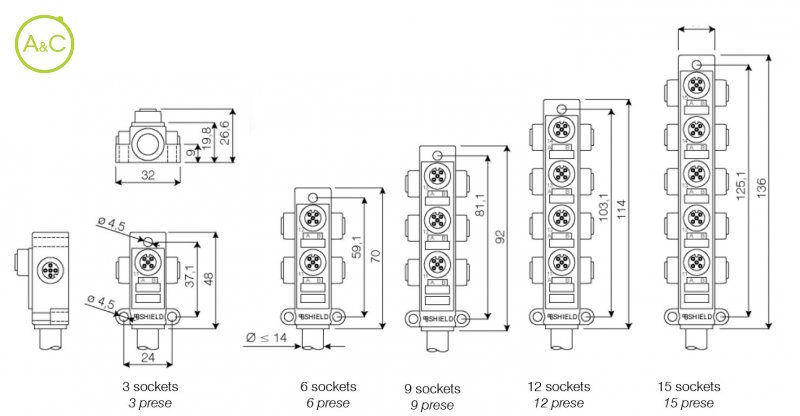

Socket Quantity

  • 3
  • 6
  • 9
  • 12
  • 15
Article Number SD301N7 00100 533 5000 SD301N7 00130 533 5000
Number Of Contacts 4 5
Protection Degree IP65* IP65*
Upper Temperature +80 °C +80 °C
Lower Temperature -25 °C -25 °C
Housing Material TPU TPU
Circuits Without LED Without LED
Housing Oil Resistance Very good Very good
Contact Material Nickel & golden plated CuZn Nickel & golden plated CuZn
Locking Nut Material Brass nickel plated Brass nickel plated
Voltage With Pollution Degree 3 Vdc ** 1 to 250 Max. power 200 W 1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac ** 1 to 250 Max. power 200 W 1 to 60 Max. power 200 W
Max. Currrent 8 A for common wires, 4 A each socket, 2 A each signal A @40°C 8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type Cable Cable
Coding A A
Connected Terminals 1= V+, 3= V-, 4= A signal 1= V+, 3= V-, 4= A signal, 5= ground
Remark The protection degree level is guaranteed only when correctly assembled with Shield's couterpart The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark * The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
