Contact AWG 24 to 20

  • SDF TERMINAL
Download Datenblatt

Applicable Wire

  • AWG 24 to 20
Article Number SDF-01T-1.0A SDF-01T-1.3AS
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description Single-Circuit Disconnectable Crimp Style Single-Circuit Disconnectable Crimp Style
Applicable Wire Size 0.2 to 0.5 ( AWG #24 to #20) mm² 0.2 to 0.5 ( AWG #24 to #20) mm²
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style Single-Circuit mm Single-Circuit mm
Rated Current (ac/dc) 5 A 5 A
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark Applicable pin and post: WR-1009 Applicable pin and post: RT-01T-1.3B
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

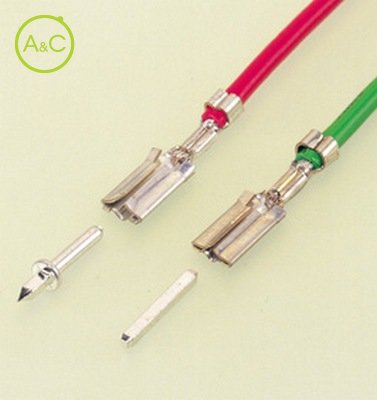

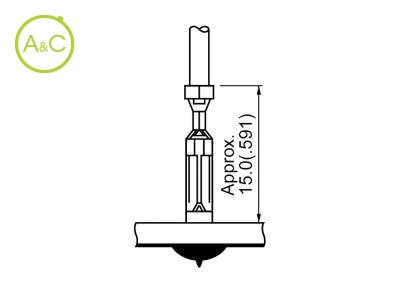

This terminal is used for 1.3mm (.051") diameter and 1.0mm (.039") square contacts. It can connect wires on high-density printed circuit boards in the same manner as JST's SMF connectors. The terminal provides a high pressure connection to the post for exceptional reliability. RoHS Compliant
