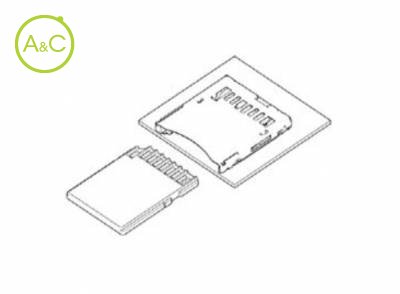

Reversed Connector for SD Card and Multi Media Card

  • SDK CONNECTOR REVERSE TYPE
Download Datenblatt

Number Of Poles

  • 9
Article Number SDKR-9BRS-K13-G-TB
Number Of Contacts 9
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description SD Card Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 5 V
Standard SD
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This connector is designed for SD Card & MMC (Multi Media Card), complying with the SD Card Association standard, and is with the switch for Write-protection & Card detection. Due to Push-push mechanism design, its card can be easily ejected by push-push operation. Space saving design, 24.1mm(W)x30.1mm(D)x2.8mm(H) The enough amount of card ejection (8.4mm) 10,000 mating cycles is guaranteed Prevention of reverse card insertion RoHS Compliant
