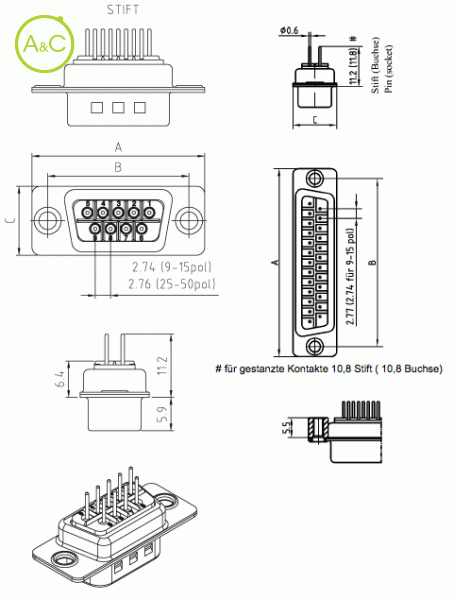

Dip solder version 180°

  • Standard version
  • With straight contacts stamped, shell and contacts tin-plated
Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50
Article Number SDT 09 152 G.T ST 09 162 G.T
Number Of Contacts 9 9
Upper Temperature + 125 °C + 125 °C
Lower Temperature -55 °C -55 °C
Contact Plating Gold over Nickel, or selective gold Gold over Nickel, or selective gold
Contact Material Brass and Copper alloy Brass and Copper alloy
Remark For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage 1 V ~ 1 V ~
Insulation Resistance 1010 MΩ 1010 MΩ
Current Rating 5 5
Contact Resistance ≤ 10 m ≤ 10 m
Gender Male Female
Insulator Material Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell Steel, tin-plated Steel, tin-plated
Mating And Unimating Force 0.3 - 0.7 0.3 - 0.7
Air And Creepage Distance ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated
Termination Type Straight dip solder Straight dip solder
Quality Class* Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
