Contact 30 to 22 AWG

  • SFK CONNECTOR
Download Datenblatt

Applicable Wire

  • 30 to 22 AWG
Article Number SSFH-001T-P0.5
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.8mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.05 to 0.34 (AWG #30 to #22) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.80 mm
Rated Current (ac/dc) 3.2 A
Rated Voltage (ac/dc) 350 V
Pcb Mount Style Surface Mount Technology (SMT)
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

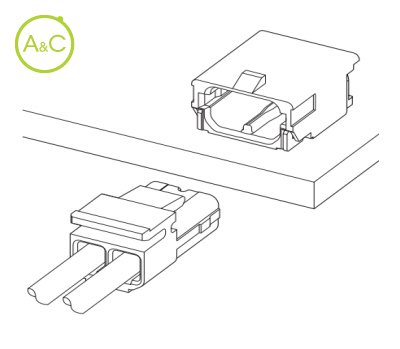

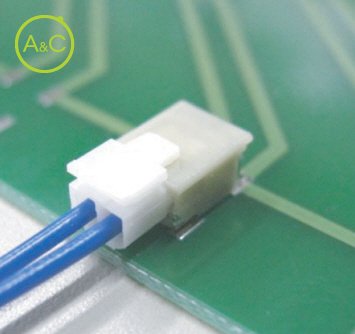

JST introduces the new SFK connector series, this 1.8mm pitch wire to board connector was originally designed for the power supply of LED backlight in LCD televisions. This crimp style 2-position surface mount connector has a secure locking device and a voltage rating of 350V AC,DC. Available in embossed tape reel packaging to enable high speed processing. Withstand high voltage Secure lock Halogen free EC directive 2002/95/EC (the RoHS Directive) - Compliant
