Housing for SFV Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
| Article Number | SFVR-02V-S |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Rated Voltage (ac/dc) | 300 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

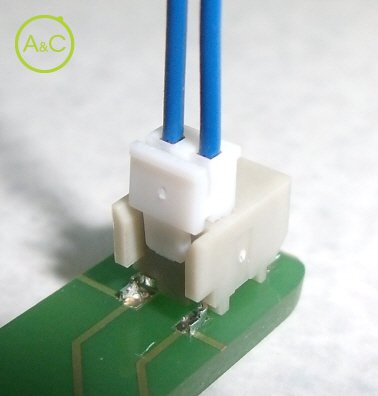

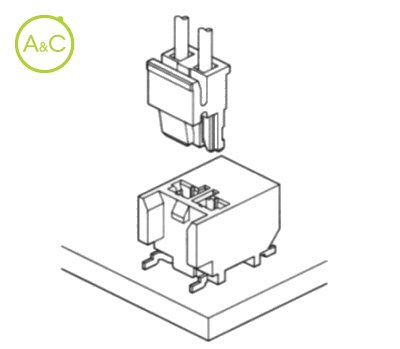

SFV Connector is a wire to board connector for connecting power supply to PCB and withstands high voltage. It is used for power supply of LED backlight in Liquid Crystal Display (LCD) Television sets.
Withstands high voltage
Secure lock
Halogen free
EC Directive 2002/95/EC (the RoHS Directive) - Compliant
