Housing With Protrusions

  • SH CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 20
Article Number SHR-02V-S-B
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.0mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

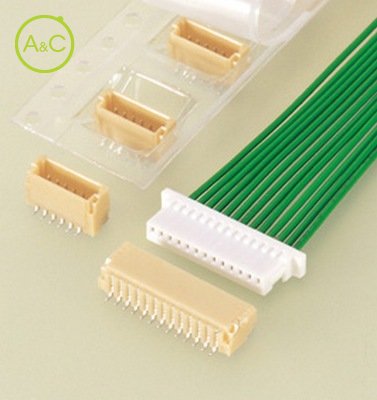

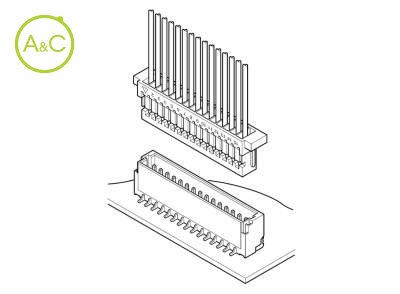

The world's first 1.0mm (.039") pitch crimp style connector. Ultra-compact, low profile design The SH connector is very small with a mounting height of 2.95mm (.116") for side entry type. Compatible with the SR insulation displacement connectors The same shrouded header can be used for the SR insulation displacement connector. Housing lances The contact retention lances on the resilient housing allow the confirmation of contact lock-in for easy and secure insertion. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
