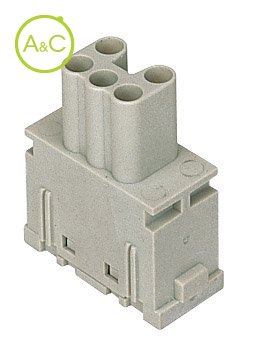

Modular units 5P, spring connection

  • Female inserts with female contacts
Download Datenblatt
  • General
Article Number CX 05 SF
Pollution Degree 3
Number Of Poles 5
Connection Type Spring clamp connection
Contact Type Female
Extra Information With wire protection
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section Without End Sleeve 0.14 mm²
Max. Cross Section Without End Sleeve 2.5 mm²
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 16 A
Nominal Rated Voltage 400 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
