Side Entry Header

  • BHT CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
Article Number SM02B-BHTS-B-TB
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 5.1mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style 5.10 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 1,5 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

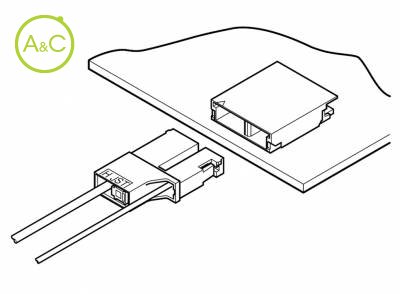

Designed for connecting liquid crystal display backlight lamps to their starters. Applicable to higher voltage (voltage rating: 1,500V) than the BH or BHS connectors. Low profile. Only 2.8mm (.110") thick so that the mounting height will be 3.0mm (.118"). Housing is of 2-piece construction, to prevent the contact for the higher voltage side from being exposed. High withstanding voltage Conforming to IEC664-1 standards, the BHT connector is designed to have enough electrical creep distances at the high-voltage side. Thus, compared to the conventional power supply connector for liquid crystal display backlight lamps, high voltage is guaranteed. Low profile Only 2.8mm (.110") height. Housing construction Housing is of 2-piece construction, to prevent the contact for the higher voltage side from being exposed, while the lower voltage side is designed to be shorter for easy insertion of the contact even with thin wires. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
