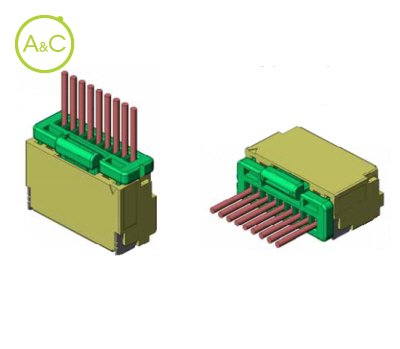

Side Entry Shrouded Header SMT

  • NSH CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
Article Number SM02B-NSHSS-TB
Number Of Contacts 2
General Description 1.0mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 1.0 (WG #28) A
Pcb Mount Style Surface Mount Technology (SMT)
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

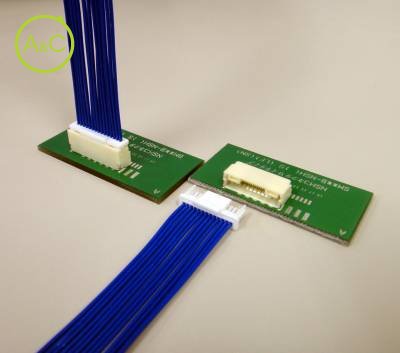

This innovative space saving connector has a unique secure lock mechanism, which provides a clear audible click when mated. Insertion forces are also kept low via a cleverly constructed spring feature, that utilises the inertia forces associated with the contact and housing elements, whilst maintaining consistent and durable contact pressure after repeated mating / unmating cycles. Compatible with the SHL connector socket contact Secure housing lock mechanism (outer lock) Prevention of miss-insertion Space saving Low insertion RoHS Compliant
