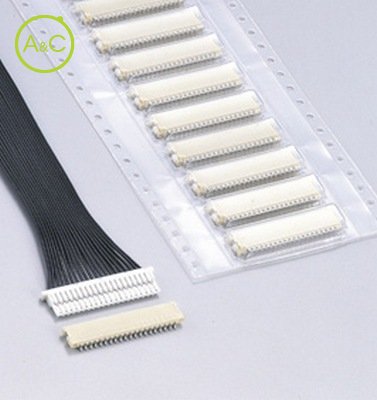

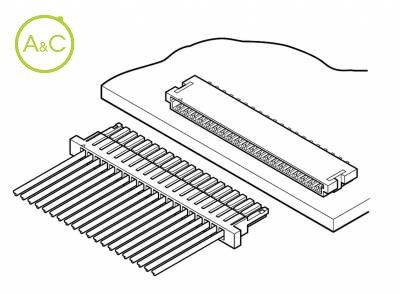

Side Entry Header SMT

  • SHL CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 5
  • 6
  • 7
  • 8
  • 10
  • 11
  • 12
  • 14
  • 16
  • 20
  • 22
  • 26
  • 30
Article Number SM02B-SHLS-TF
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.0mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Remark /
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Thin design, mounting height is only 1.8mm (.071 inches) for normal type, and 1.4mm (.055 inches) for off-set type. Low insertion force, with the contact of unique construction featuring spring action, its insertion into the housing is easy, yet with clear click feeling. Deformation preventive design. Contact is designed to prevent the deformation during the crimping operation. Thin design The height after mounting on the PC board is only 1.8mm (.071") for normal type, and 1.4mm (.055") for off-set type. Low insertion force The contact has a clear click feeling. Spring action and unique design of the contact makes contact insertion into the housing easy, and contact pressure is retained after repeated mating/unmating. Deformation preventative design The contact has a deformation preventative configuration, which, in spite of the very thin design of the connector, is resistant to distortion. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
