Side Entry Header SMT

  • XSR CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 4
  • 6
  • 10
  • 16
  • 20
  • 22
Article Number SM02B-XSRS-ETB
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.6mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.60 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 30 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

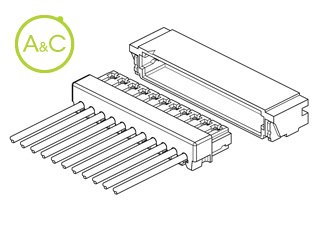

This is the world's smallest 0.6mm pitch ID connector for deSCrete wires. This wire to board miniaturized connector has a mounting height of 1.45mm and depth of 3.0mm. Space saving Twin U-slot insulation displacement section New strain relief structure Suitable for fine wires Applicable to automatic ID machines Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
