Male Connector

  • HCH CONNECTOR
Download Datenblatt

Number Of Poles

  • 4
  • 9
Article Number SM04B-HCHK-TB
Number Of Contacts 4
Upper Temperature +120 °C
Lower Temperature -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style
Connection Type Automotive
Pitch / Style 2.54 mm
Rated Current (ac/dc) 5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

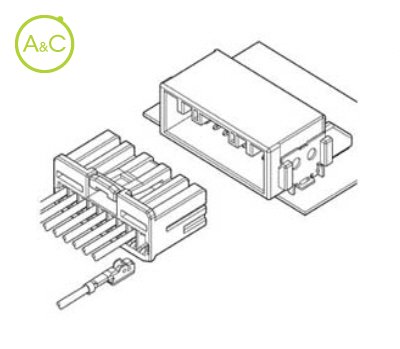

2.54mm pitch, 0.64 unsealed connector for automotive corresponding to the surface mounting. Miniturization Using the short length terminal, the miniaturization is realized. Surface mounting Corresponding to the surface mounting (lead-free), mounting workability is improved. Reliability High reliability ensured by using proven female terminal in the automotive electrical equipment. RoHS Compliant
