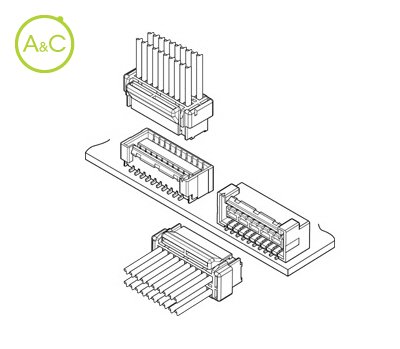

Side Entry Shrouded Header SMT

  • ZPD CONNECTOR
Download Datenblatt

Number Of Poles

  • 10
  • 12
  • 14
  • 16
  • 18
  • 20
  • 22
  • 24
  • 26
  • 28
  • 30
Article Number SM10B-ZPDSS-TF
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
JST introduces the dual row ZPD connector series, with a pitch size of 1.5mm, the ZPD housing features a secure locking device, which prevents accidental diSConnection. In order to meet the demands of high density PCB designing, this wire to board diSConnectable crimp style connector series has a height of 9.2mm for the side entry configuration. Available in 10 to 30 circuits, this SMT series is also available in embossed tape reel packaging to enable high speed processing. Secure locking structure Low insertion force Suction area for picking up Engagement enhanced design RoHS Compliant
