Terminal

  • SPF TERMINAL
Download Datenblatt

Applicable Wire

  • AWG 24 to 20
Article Number SPF-01T-2.5C
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Single-Circuit Disconnectable Crimp Style
Applicable Wire Size 0.2 to 0.5 ( AWG #24 to #20) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style Single-Circuit mm
Rated Current (ac/dc) 5 A
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

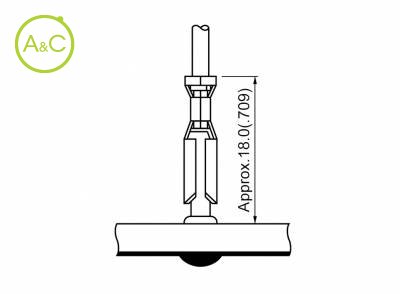

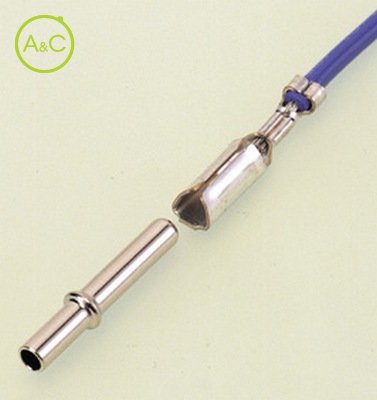

This terminal is used with 2.36mm (.093") diameter GT pins. The SPF terminal has a large contact area, withstands stress caused by repeated insertions and removals, and provides excellent retaining force. It is best suited for circuit connections that require a large current. RoHS Compliant
