Pin contact AWG 26 to 16

  • XL CONNECTOR
Download Datenblatt

Applicable Wire

  • AWG 20 to 16
  • AWG 26 to 20
Article Number SYM-01T-P0.7
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size 0.13 to 0.5 (AWG #26 to #20) mm²
Connection Type Wire to Wire Connectors
Pitch / Style 5.00 mm
Rated Current (ac/dc) 10 A
Rated Voltage (ac/dc) 300 V
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

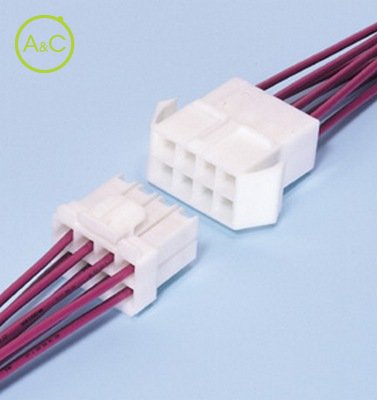

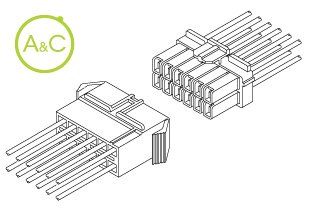

XL connectors are reliable wire-to-wire connectors, used for such electrical and electronic equipment as home appliances, vending machines, and office machines. Reliable housing construction Since all the contacts in this connector are individually and totally surrounded by housing walls (egg-crate style), and since the contact pitch is 5.0mm (.197"), the electrical creep distances and dielectric spacings are great enough to meet most safety requirements. In addition, the housings are sturdy enough to prevent deformation and ensure smooth mating. Easy contact insertion Contacts can be inserted into the housing easily and smoothly. Box-shaped contact The box-shaped contact used successfully in the VH and NH connectors is used as a socket contact in the XL connectors. This contact covers a wide range of applications from low voltage, low-current signal circuits to power supply circuits. Two kinds of connections XL connectors can be used for wire-to-wire connection and for printed circuit board connection. Standards UL Recognized E60389 CSA Certified LR20812 TUV R75052 RoHS Compliant
