Waterproof,Junction boxes empty and with terminal blocks

  • SNAP-IN
  • TH026 Terminal block
Download Datenblatt

Protection Degree

  • IP54
  • IP67

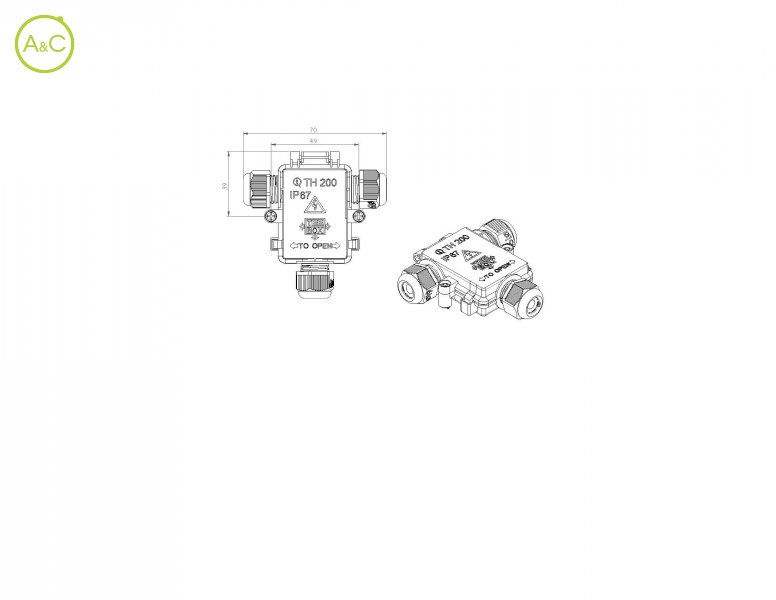

Article Number THA.200.F2E
Upper Temperature +125 °C
Lower Temperature -40 °C
Remark Only for IP67 version
Inner Dimensions 47 mm x 33 mm x 16 mm
Min-max Cable Diameter 7,5 - 9,5 mm
Terminal Block TH026
Cable Entries/exits 3 ways
T Marking T85 16 A °C
Body PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Lock Nuts PA66 FV UL94 GWT 850°C black - grey RAL 7035
Grommets TPE
Co-moulded Seal Of Lid SEBS
Fixing Screws Of Lid ∅ 3,9 x 13,0 mm self-screwing steel zinc plated*
Standards EN60529:1991+A1:2000 EN60998-1:2004
Note Useful with TH026 terminal block and standard terminal blocks.
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
