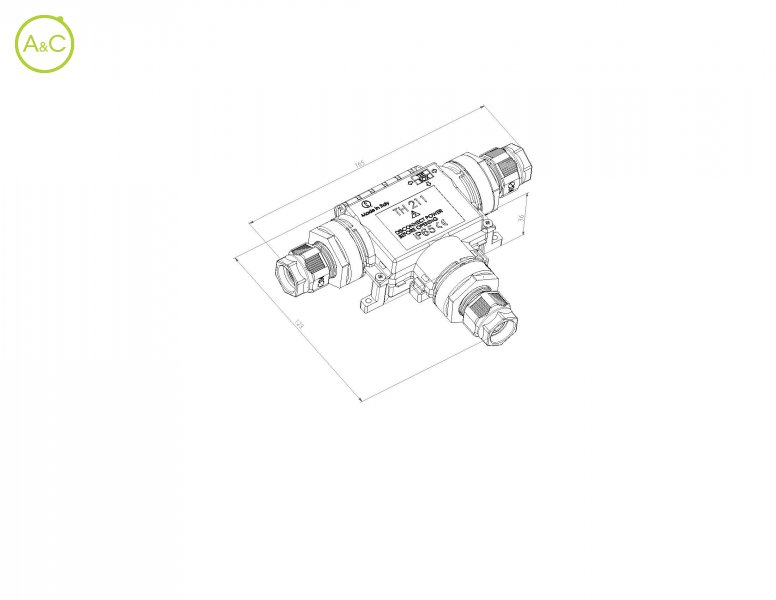

Junction boxes empty and with terminal blocks

Download Datenblatt

Protection Degree

  • IP54
  • IP65
Article Number THA.211.A1A THA.211.B1A THA.211.C1A THA.211.D1A
Upper Temperature +125 °C +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Inner Dimensions 58 mm x 45 mm x 27 mm 58 mm x 45 mm x 27 mm 58 mm x 45 mm x 27 mm 58 mm x 45 mm x 27 mm
Cable Diameter Min-max A 8,0 - 17,0 mm 8,0 - 17,0 mm 7,0 - 13,5 mm 7,0 - 13,5 mm
Cable Diameter Min-max B 8,0 - 17,0 mm 8,0 - 17,0 mm 7,0 - 13,5 mm 7,0 - 13,5 mm
Cable Diameter Min-max C 8,0 - 17,0 mm 7,0 - 13,5 mm 8,0 - 17,0 mm 7,0 - 13,5 mm
Terminal Block TH026 / TH029 / TH032 / TH027 TH026 / TH029 / TH032 / TH027 TH026 / TH029 / TH032 / TH027 TH026 / TH029 / TH032 / TH027
Cable Entries/exits 3 ways 3 ways 3 ways 3 ways
Body PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Cable Glands PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Grommets TPE TPE TPE TPE
Co-moulded Seal Of Lid SEBS SEBS SEBS SEBS
Seals Silicon Silicon Silicon Silicon
Cover Fixing Screws M3 x 12,0 mm inox stainless steel M3 x 12,0 mm inox stainless steel M3 x 12,0 mm inox stainless steel M3 x 12,0 mm inox stainless steel
Standards TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min
Note ∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm ∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm ∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm ∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
6000194CC
Terminal block mounting plate for TH211 series
