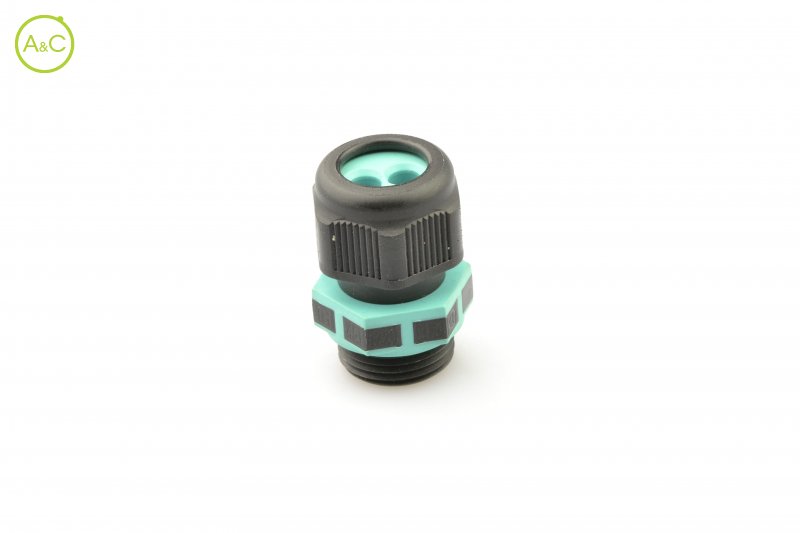

IP68 Co-moulded PG16 cable gland

  • 2 holes
Download Datenblatt

Cable Diameter

  • 6
Article Number THA.451.A2A THA.451.A2E
Protection Degree IP68 IP68
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Thread PG16 PG16
Colour black grey RAL 7035
Min-max Cable Diameter 6 mm 6 mm
Protection Degree Details 5 bar (50 m / 1 h) 5 bar (50 m / 1 h)
Body PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Lock Nuts PA66 GF UL94 V0 GWT 960°C black - grey RAL7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL7035
Co-moulded Seals TPE grey RAL7001 TPE grey RAL7001
Standards EN50262:1998+ A1:2001 +A1:2004 EN50262:1998+ A1:2001 +A1:2004
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
